uvex laservision · Made in Germany

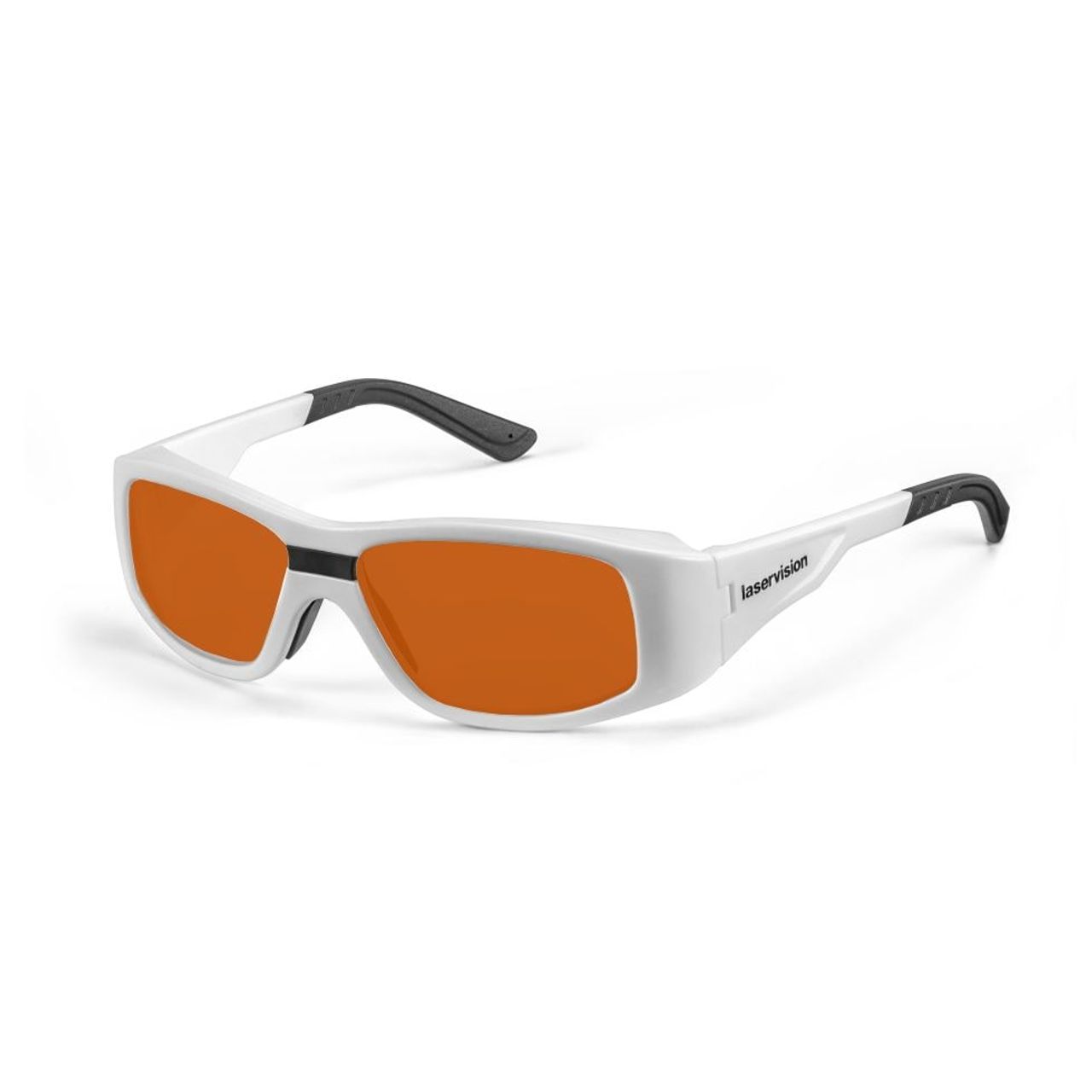

uvex laservision F20 P1L02 Nd:YAG laser safety spectacles – OD8+ / OD7+
1399,00 złgross price, incl. VAT
The F20 spectacles with the P1L02 filter from uvex laservision protect the operator of an Nd:YAG Q-switched laser at both wavelengths: 532 nm and 1064 nm. Full protection levels to EN 207, CE marking, and very high M ratings (mode-locked) at 1064 nm, 532 nm and 355 nm.
The F20 is a classic lightweight spectacle frame — 30 g excluding packaging — worn directly, without prescription glasses underneath. The orange absorptive filter transmits about 30 % of visible light, so the aiming beam and the fluorescence used to align the beam stay visible.
Key figures
- Protection at 532 nm
- OD8+
- Protection at 1064 nm
- OD7+
- Standard
- EN 207
- Weight
- 30 g
Description
What OD means
Optical density (OD) states how many times the filter attenuates the beam — each step is a factor of ten. OD8+ at 532 nm means attenuation of at least 10⁸, OD7+ at 1064 nm at least 10⁷. For a Q-switched laser what counts is the D/I/R/M rating to EN 207 at the specific wavelength; the values below come from the manufacturer's data sheet.
- 532 nm: OD8+, D LB6 + I LB7 + RM LB8
- 1064 nm: OD7+, D LB6 + IRM LB7
- Plastic absorptive filter, approx. 2 mm thick, uncoated
- Lightweight spectacle frame, 30 g
Same protection, different frame
The P1L02 filter is identical to the one in the F18. The frame is the difference: the F18 is an over-the-glasses model worn on top of prescription glasses, the F20 is the lighter choice for an operator who wears no correction or works in contact lenses.
In the box
- F20 spectacles with the P1L02 filter (manufacturer order no. F20P1L021001)
- Hexagonal cardboard box
- Microfibre pouch
- Cord for hanging the spectacles
Technical specification
- Protection at 532 nm
- OD8+
- Protection at 1064 nm
- OD7+
- Standard
- EN 207
- Weight
- 30 g
- Visible light transmission (VLT)
- approx. 30 %
- Protection range
- 180–540 nm and 780–1100 nm
- Protection levels 180–315 nm
- D LB8 + IR LB4 + M LB6
- Protection levels >315–532 nm
- D LB6 + I LB7 + RM LB8
- Protection levels >532–540 nm
- OD7+ to OD4+ (DIRM LB7–LB4)
- Protection levels 780–940 nm
- OD3+ to OD6+ (DIRM LB3–LB6)
- Protection levels 940–1070 nm
- D LB6 + IRM LB7
- Protection levels >1070–1100 nm
- OD6+ to OD4+ (DIRM LB6–LB4)
- Filter
- P1L02, plastic, absorptive, approx. 2 mm
- Filter colour
- orange
- Frame
- F20, spectacle type, lightweight
- Applications
- Nd:YAG, SHG, THG, pump diodes
- Marking
- CE
- Manufacturer order number
- F20P1L021001
- GTIN
- 4050369018921
laservision was founded in 1987 as a joint venture between uvex safety and Rupp & Hubrach, and has been wholly owned by the uvex group since 2004. Filters and frames are made at the plant in Fürth near Nuremberg — design, production and testing in one place, under the "made in Germany" mark.
The range covers laser protection for industry and medicine: operator and patient eyewear, laser windows and curtains, and bespoke solutions. Every filter carries certified protection levels to EN 207 for specific wavelengths — the figures in the specification come from the manufacturer's data sheet.
