uvex laservision · Made in Germany
uvex laservision F18 P1L02 Nd:YAG laser safety spectacles – OD8+ / OD7+
1897,00 złgross price, incl. VAT
The F18 spectacles with the P1L02 filter from uvex laservision protect the operator of an Nd:YAG Q-switched laser at both wavelengths: 532 nm and 1064 nm. Full protection levels to EN 207, CE marking, and high M ratings (mode-locked) at 1064 nm, 532 nm and 355 nm.

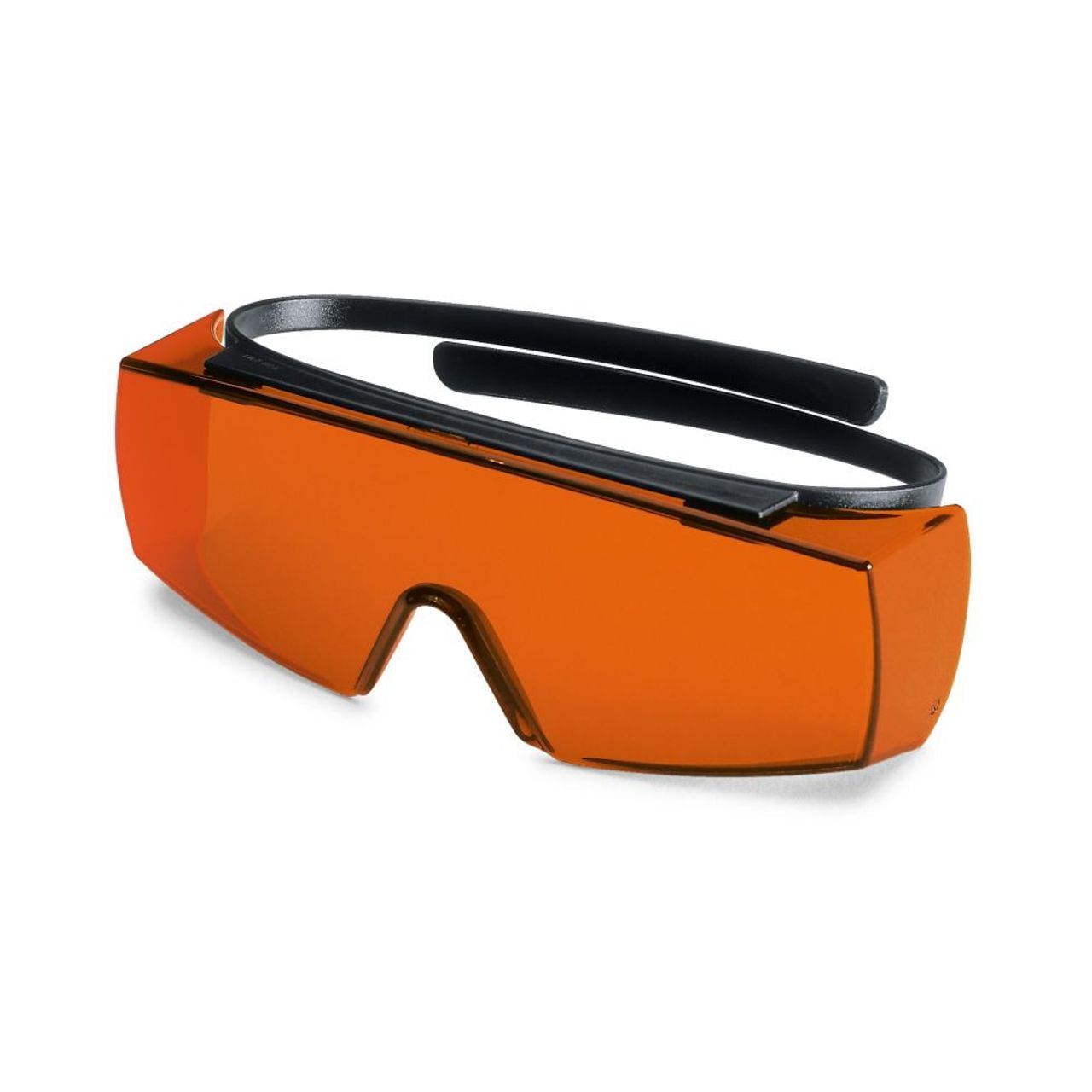

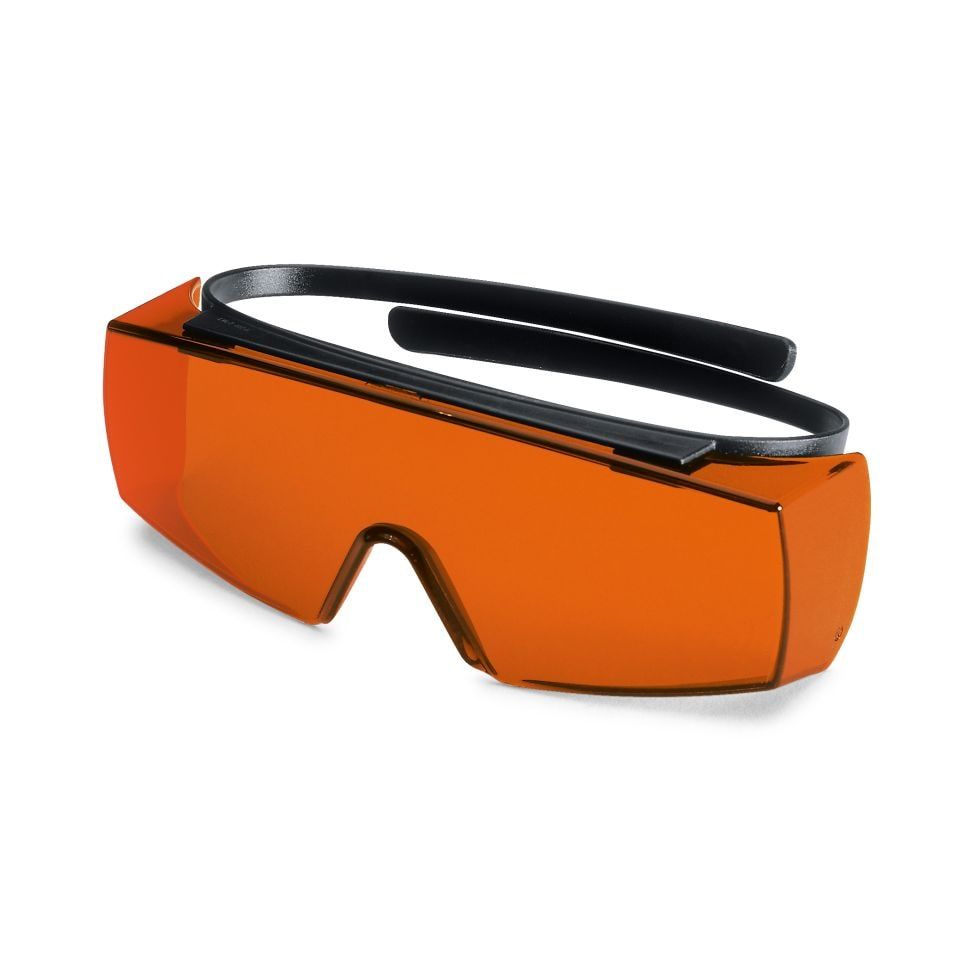

The F18 is a lightweight over-the-glasses (OTG) frame with temples — it goes on over prescription glasses without taking them off. The orange absorptive filter transmits about 30 % of visible light, so the aiming beam and the fluorescence used to align the beam stay visible.
Key figures
- Protection at 532 nm
- OD8+
- Protection at 1064 nm
- OD7+
- Standard
- EN 207
- Visible light transmission (VLT)
- approx. 30 %
Description
What OD means
Optical density (OD) states how many times the filter attenuates the beam — each step is a factor of ten. OD8+ at 532 nm means attenuation of at least 10⁸, OD7+ at 1064 nm at least 10⁷. For a Q-switched laser what counts is the D/I/R/M rating to EN 207 at the specific wavelength; the values below come from the manufacturer's data sheet.
- 532 nm: OD8+, D LB6 + I LB7 + RM LB8
- 1064 nm: OD7+, D LB6 + IRM LB7
- Plastic absorptive filter, approx. 2 mm thick, uncoated
- Over-the-glasses frame with temples — fits over prescription glasses
- Interchangeable temples (a set of spare F18 frames is available from the manufacturer)
In the box
- F18 spectacles with the P1L02 filter (manufacturer order no. F18P1L021003)
- Hexagonal cardboard box
- Microfibre pouch
- Cord for hanging the spectacles
Technical specification
- Protection at 532 nm
- OD8+
- Protection at 1064 nm
- OD7+
- Standard
- EN 207
- Visible light transmission (VLT)
- approx. 30 %
- Protection range
- 180–540 nm and 780–1100 nm
- Protection levels 180–315 nm
- D LB8 + IR LB4 + M LB6
- Protection levels >315–532 nm
- D LB6 + I LB7 + RM LB8
- Protection levels >532–540 nm
- OD7+ to OD4+ (DIRM LB7–LB4)
- Protection levels 780–940 nm
- OD3+ to OD6+ (DIRM LB3–LB6)
- Protection levels 940–1070 nm
- D LB6 + IRM LB7
- Protection levels >1070–1100 nm
- OD6+ to OD4+ (DIRM LB6–LB4)
- Filter
- P1L02, plastic, absorptive, approx. 2 mm
- Filter colour
- orange
- Frame
- F18, over-the-glasses with temples
- Applications
- Nd:YAG, SHG, THG, pump diodes
- Marking
- CE
- Manufacturer order number
- F18P1L021003
- GTIN
- 4050369053021
laservision was founded in 1987 as a joint venture between uvex safety and Rupp & Hubrach, and has been wholly owned by the uvex group since 2004. Filters and frames are made at the plant in Fürth near Nuremberg — design, production and testing in one place, under the "made in Germany" mark.
The range covers laser protection for industry and medicine: operator and patient eyewear, laser windows and curtains, and bespoke solutions. Every filter carries certified protection levels to EN 207 for specific wavelengths — the figures in the specification come from the manufacturer's data sheet.
